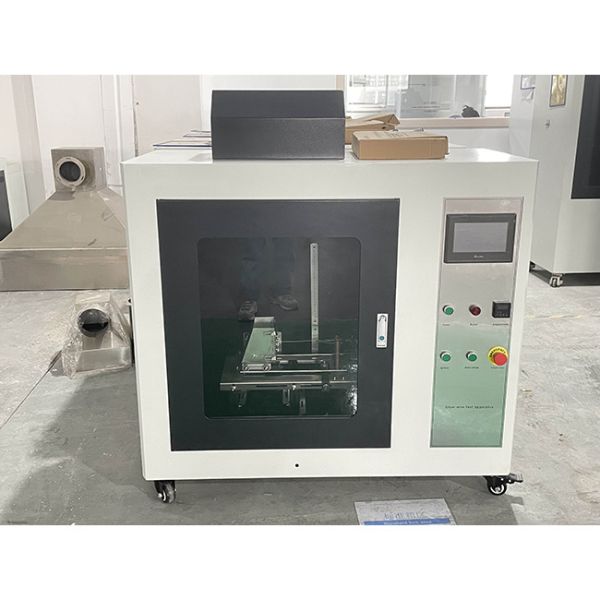

IEC 60695-2-10 Glow Wire Test Flammability Testing Apparatus
Product information:
The Glow Wire Tester is a professional fire hazard testing device designed primarily according to international standards IEC 60695-2-10, IEC 60695-2-11, IEC 60695-2-12, and IEC 60695-2-13. It is used to evaluate the fire resistance of solid insulating materials (such as plastic housings, circuit board substrates, connectors, etc.) in electrical and electronic products. By simulating thermal stress caused by overheated components or resistor failures, it tests the ignition risk, flame propagation, and self-extinguishing ability of materials under contact with a high-temperature glow wire. This equipment is widely used in the flammability testing of materials and finished products in household appliances (such as refrigerators, washing machines, and microwave ovens), lighting equipment, information technology products, switches and sockets, power tools, and other fields to ensure product compliance with safety regulations and prevent potential fire hazards.
Standard:
IEC 60695-2-10: Fire hazard testing — Part 2-10: Glowing/hot-wire based test methods — Glow-wire apparatus and common test procedure
IEC 60695-2-11: Fire hazard testing — Part 2-11: Glowing/hot-wire based test methods — Glow-wire flammability test method for end products (GWEPT)
IEC 60695-2-12: Fire hazard testing — Part 2-12: Glowing/hot-wire based test methods — Glow-wire flammability index (GWFI) test method for materials
IEC 60695-2-13: Fire hazard testing — Part 2-13: Glowing/hot-wire based test methods — Glow-wire ignition temperature (GWIT) test method for materials
Test Product Application:
Household Appliances: Washing machines, refrigerators, microwave ovens, ovens, electric kettles, vacuum cleaners, coffee makers, air purifiers, electric fans, blenders, etc.
Lighting Equipment: LED lamps, fluorescent lamps, lamp holders, switches, ballasts.
Information Technology Equipment: Computer mainframes, monitors, printers, mobile phone chargers, laptop power adapters.
Low-Voltage Electrical Appliances and Switching Equipment: Plugs and sockets, switches, circuit breakers (MCBs), relays, connectors, terminal blocks.
Power Tools: Electric drills, electric saws, housings and insulating components of handheld power tools.
Electronic Instruments and Consumer Electronics: Televisions, audio equipment, headphones, speakers, game consoles.
Other Specific Components: Plastic housings, circuit board insulation materials, cable sheaths, connector plastic parts, non-metallic supports, etc.
Parameter:
1, hot ring composed of Nickel-chromium wire (77% Ni/20 ± 1% Cr) and annealing treatment needs to be
done;
2, temperature range: 500~1000℃, digital display can be adjusted.
3, temperature tolerance: ± 3 ℃ (500~1000℃), temperature measurement accuracy ± 0.5.
4, temperature sensors: 1mmK imported armored thermocouples (brand: United States OMEGA).
5, glow-wire pressure on the sample: 0.95 n ± 0.1 n, 0.8 N~1.2 n adjustable pressure range, accuracy ± 0.1
n and limit the indentation depth of at least 7mm.
6, timing ranges: 0~99 adjustable within 99 seconds.7, and has the effect of burn time (Ta, generally based on standards set for 30 seconds), the burn time (Ti)
and the light time (Te) timer.
8, time error: ± 1s.
9, ignited bedding layer: minimum thickness 10MM white pine Board, 12g/M3~30g/M3 covering standard
silk paper, away from the glow-wire 200mm ± 5mm.
10, the instrument is simple, stable and reliable temperature measurement system, and automatic
temperature compensation.
11, power supply: AC220V ± 10%/50Hz (other power specifications can be customized).
12, PLC touch screen control system, operation is simple and convenient.
13, large plastic glass, easy to observe samples inside the box.
14, Chamber sizes shown in the table below:
